Pyramid quickstart

Download resources
PyraMIDI implementation chart PyraOs firmware 2.3 PDF user guide 2.0




Pyramid workflow


Wire up

Connect the Pyramid to the supplied mini USB power supply, or connect the Pyramid to a computer with a standard mini USB cable, and press the on/off button.

Sequencer workflow

Pyramid provides 64 tracks. A track is a loop that contains polyphonic or monophonic notes, automation and effects; plays repeatedly, and controls instruments connected to MIDI A, MIDI B, USB MIDI, or CV outputs.

The Pyramid workflow is designed around muting and unmuting tracks to build sequences (group of tracks). Moreover, you can create up to 32 patterns (P1, P2, ...) per tracks, to add variations to your sequences.

Pyramid allows you to easily produce your tracks from scratch thanks to powerful creative tools, such as:
smart chord harmonizer,
scales generator,
beat repeat,
hold and relatch,
groundbreaking step sequencer (unlimited number of notes and CC messages per step, FX parameters step lock)
euclidean sequencer,
polyrhythmy & polymetry,
real-time effects.

Pyramid is an instant source of inspiration to start and finish your song. You will never run out of ideas!

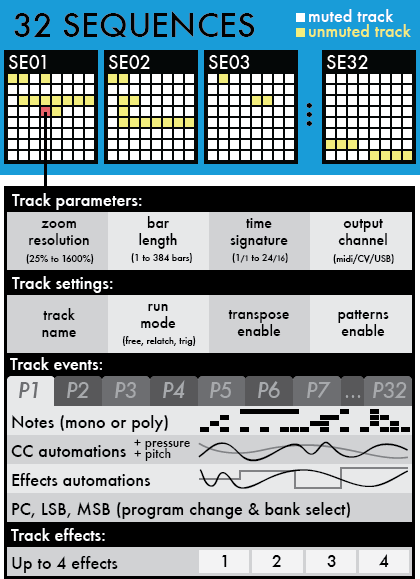

Tracks vs Sequences

A Pyramid project can include up to 64 tracks. Tracks are organized into 4 banks: A, B, C, D. Each bank contains a group of 16 tracks. Thus all 64 tracks and four banks are organized from TR01A to TR16A (track 1 through 16, bank A) up to TR01D to TR16D (track 1 through 16, bank D).

Each track can be configured according to your needs.

A track can be:
● a standard pattern (e.g. a 4 bars track),
● a linear clip (e.g. a 384 bars track),
● an euclidean pattern,
● a polymetric pattern (e.g. a 1+1/4 bar track),
● a polyrhythmic pattern (e.g. a 8 bars track with 7/8 time signature),
● a micro track with a high zoom resolution (e.g. a 1/4 bar track with 1600% zoom),
● ...

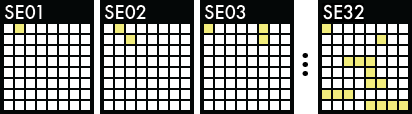

A Pyramid project can be composed of up to 32 sequences. A sequence defines the mute states of each of the 64 available tracks. In each sequence, you choose which track is unmmuted (active) or muted (inactive) in order to build your song or arrange your set:

You can choose to play 64 tracks at the same time in a single sequence, or mute/unmute any of the 64 tracks across 16 sequences: it’s a great and versatile way to create songs very quickly.

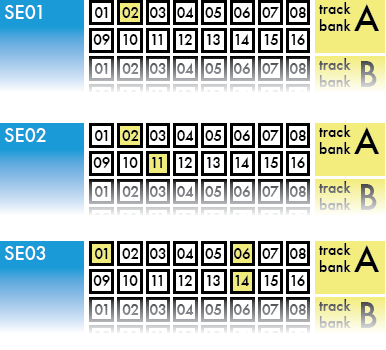

In the example below SE01, (sequence 01) has only TR02A (track 02) unmuted. In SE02 (sequence 02), TR02A and TR11A (tracks 02 and 11) are unmuted. In SE03 (sequence 03), tracks 01, 06, and 14 are unmuted:

Individual tracks are shared between sequences. Changes to TR02A will apply to all sequences where TR02A is active (SE01 and SE02 in the example above).

When the sequence changes, if a previously active track is still active in the next sequence, it will not restart from the beginning like a classic sequencer. It will continue to play & loop and therefore keep its shift with the other tracks, to keep the polymetry running (see "Note about track lengths concurrence & sequences" section). If you want to restart your track from the beggining like a classic sequencer, configure your track in "relatch mode".

Moreover, if you want to add some MIDI effects on TR02A, you can assign a control (e.g. an encoder) for this effect, and affect the sound of the TR02A in real-time, no matter which sequence you are in.

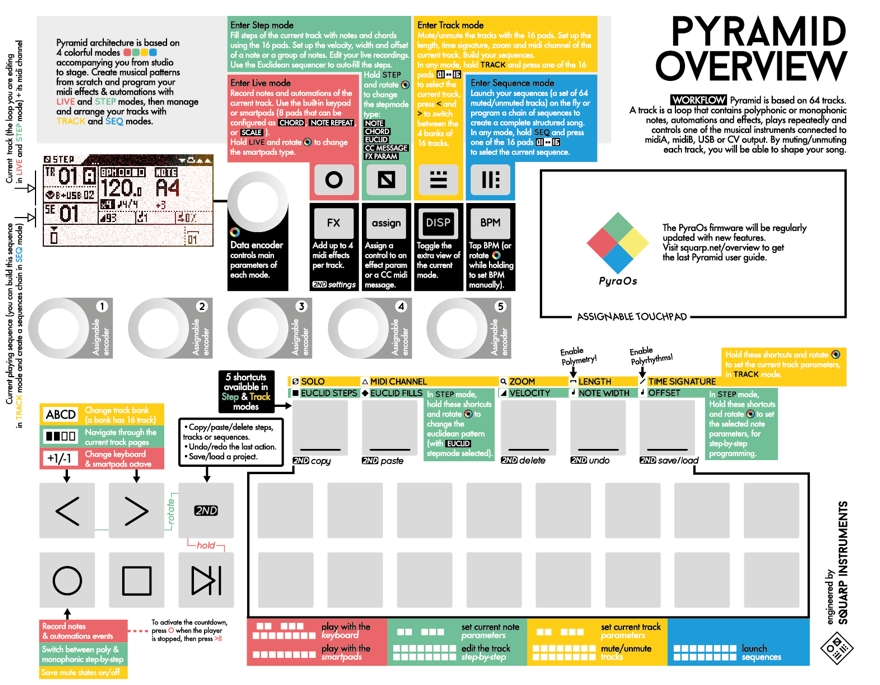

Quick tour of the 4 Pyramid modes

Pyramid is a dynamic sequencer that allows you to interact intuitively with tracks and sequences. All modes are always accessible. Launch sequences in SEQ mode; mute/unmute tracks in TRACK mode; play with effects; and even add notes and CC messages in LIVE and STEP modes. You can assign one of the 5 multifunctional rotary encoders to control MIDI effect parameters in real-time. Encoder assignments are independent of the sequence you are viewing or the mode you are working in.

Press LIVE :
Record notes and CC automation to the current track using the built-in keypads, smartpads (8 pads that can be configured as chord generator, note repeat or scaled piano), an attached MIDI controller, a CV instrument, or your computer.


Press STEP :
Fill steps of the current track with notes and chords using the 16 pads of the  NOTE  &  CHORD  stepmodes. Set up the velocity, width and offset of a note or a group of notes. Edit your live recording with surgical precision. Switch to  EUCLID  stepmode to auto-fill steps. Switch to  CC MESSAGES  stepmode to create or edit midi CC automation. Switch to  EFFECTS  stepmode to create or edit effect parameter locks. Each step (and even microstep) can contain an unlimited number of notes, CC and FX automations!

Press TRACK :
Mute/unmute the tracks using the 16 pads. Change the current BANK (A/B/C/D) with  <  and  > . Set up the length, time signature, zoom and midi channel of the current track. Build the current sequence.

Press SEQ :
Launch your sequences (stored mute states of the 64 tracks) on the fly, or program a chain of sequences to create a complete structured song.

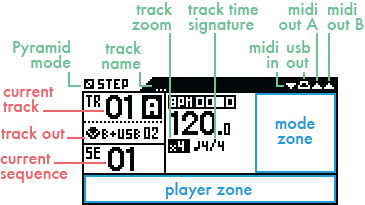

Screen

In each of the 4 modes, the following data is displayed:


Pyramid mode: LIVE STEP TRACK SEQ

Track name: name of the current track.

Track zoom: zoom of the current track (/4, /2, x1, x2, x4, x8, x16).

Track time signature: time signature of the current track (from 1/1 to 24/16).

Midi in flashes if a midi message is received; midi out A, midi out B and USB out flash when a midi message is sent.

Current track: track number and bank (A, B, C, D) in Live and Step Modes.

Track out: sequence number and the tracks you are editing in TRACK mode. Can also display the next sequence to be played in the chain.

Current sequence shows the playing sequence (and so the group of tracks you are editing in TRACK mode). Can also display the next sequence to be played in the chain.

Mode zone highlights the main parameters of each mode, which generally can be edited via the clickable data encoder .

Player zone: track player (a representation of the current track, the level of zoom, the track length), the player position, and the page you are viewing in Live, Step and Track modes:

The example above shows a 12 and 1/4 measure long track (12 measures + 1 beat). The four outlined squares represent the first page of the track. The arrow icon indicates the player is currently at the twelfth measure.

In Seq Mode the Player zone gives the set sequence chain:

In the example above, 6 sequences are chained and the SE06 (highlighted) will play 2 measures.


Basics

How to select the current track
(TR01A to TR16D)

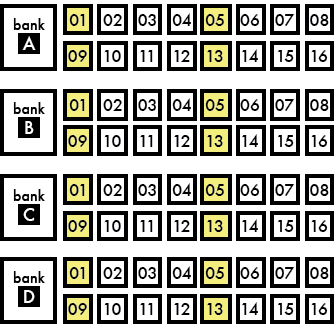

As described in ”Tracks vs Sequences” a Pyramid project can include up to 64 tracks:
● 16 tracks in the bank A
● 16 tracks in the bank B
● 16 tracks in the bank C
● 16 tracks in the bank D

In any mode hold TRACK while pressing one of the 16 pads to select the track of the current BANK you want to work with (for example TR03A).

To change the current track BANK (A/B/C/D), hold TRACK and press  <  or  > .



The current track number and its output channel are displayed on the screen:

Change the MIDI output channel of the selected track by pressing TRACK + midi channel. Multiple tracks can transmit on the same MIDI channel.

Note: A track is created as soon as you edit a note or a CC message in LIVE or STEP mode.

Capturing a performance

When in LIVE mode, capture a performance on a currently playing track by pressing press rec . If the track is paused, press to ”arm” the track, then press to begin a count-off before recording begins.

You can playand record notes with the built-in keyboard and smartpads . Use the 5 assignables encoders and the assignable touchpad to record CC and FX automation.

You can also use an external MIDI controller to record notes and automation. It’s even possible to record CV events thanks to the CV/gate input!

Pyramid allows unlimited polyphony and CC automation data per track. Quantize is not active by default, so you will capture the “human feel” of your performance.

Enter STEP mode and press DISP to view the piano roll and see the recorded notes:

Of course, it's possible to add, remove, edit notes in a flash in STEP mode with the step-by-step sequencer.

Live mode user guide

Using the step sequencer

Enter STEP mode. The default stepmode is NOTE: that means that you can add, remove, edit notes on the current track:
to select the note (e.g. C4), rotate
to add a note, press one of the 16 steps
to remove a note, press again this step
you can also hold one of the 16 steps, and rotate to set the note.

Pyramid is fully polyphonic, so you can add as many notes as you want on one step. You can set velocity, width and offset of a note. You can zoom to set the resolution of steps (by default 1 step = a quarter note, but you can zoom up to 1 step = a 1/64 note). Finally, you can set the length and the time signature of the track, so you can work on very short or very long patterns!

Press DISP to view the piano roll of the current track and the notes entered in LIVE and STEP mode:

Cycle through stepmodes by holding STEP and rotating . There are 5 stepmodes:
● NOTE
(add, delete, edit notes)
● CHORD
(add, delete, edit chords)
● EUCLID
(generate algorithmic patterns)
● EFFECTS
(add, delete, edit FX automations)
● CC MESSAGES (add, delete, edit CC automations)

Multiple stepmodes can be used on a single track (except EUCLID) to add notes, chords, CC automation, and FX automation. Of course, you can also create tracks that only contain note or CC information.

Step mode user guide

Muting and unmuting tracks

Enter TRACK mode. Press  <   >  to select the track bank.

Use the 16 pads to mute/unmute any tracks you have created, from TR01A to TR16D.

You can play up to 64 tracks simultaneously! Muting and unmuting tracks is a great and intuitive way to perform your project spontaneously.

Press DISP in TRACK mode to display track progressions:

Note: Changes in mute/unmute states sync differently depending on the PERFORM type selected in SEQ mode.

Track mode user guide

Selecting the current sequence

The current sequence number is displayed on the screen:



In any mode, hold SEQ and select the sequence (from SE01 to SE16) by pressing the corresponding pad . If you select an empty sequence a new sequence will be created and the track mute states of the last sequence will be applied.

To display sequences from SE17 to SE32, hold SEQ and press  > .

To launch a new sequence after the end of the currently playing sequence, enter SEQ mode and press one of the 16 pads . The newly selected sequence will begin when the current one ends. Holding SEQ while pressing one of the 16 pads will start the newly selected sequence without waiting for the end of the currently playing sequence (instant jump).

Creating and editing sequences

In TRACK mode, hold SEQ and select the sequence you want to create or edit by pressing one of the 16 pads.

To display sequences SE17 through SE32, hold SEQ and press  > .

The current sequence number is displayed on the screen:



Then mute/unmute your active tracks to build the sequence. A sequence is automatically created as soon as you change the mute state of a track.

Performing sequences

Once you have created several sequences, enter SEQ mode to play them. Make sure "PERFORM" is selected, in order to perform sequences on the fly. Sequences will always remain in sync:

You can select how Pyramid transitions between sequences: instant, 1 beat, 1 bar, 2 bars, ... which gives you deep control over performing with sequences.

Press any sequence number to launch it. Pyramid waits until the current sequence ends (the end of the bar, if "1 BAR" selected) before launching the next sequence. The current sequence will play in a loop until you press another sequence number.

Seq mode user guide

Tempo

Tap BPM to set up the tempo, or hold BPM and turn the data knob .

To fine tune BPM to decimal values, press while rotating it. The tempo resolution ranges from 10.0 BPM to 999.9 BPM.

 TIP  Hold  2ND  + BPM and turn the data knob . The tempo change will be applied only when you release  2ND .

 TIP  Hold  2ND  + BPM and slide the touchpad X axis to temporarily shift the tempo up or down. Very handy to manually syncing Pyramid with an external sound source (for example a turntable).

 TIP  Hold  2ND  and press  <  or  >  to double or divide the BPM in a flash.

By default Pyramid automatically synchronizes BPM to any instrument providing a sync signal at the MIDI input.

Undo

In every mode, press  2ND  +  undo  to cancel the last track edit, for example notes or automations recorded in Live mode. Another press on  undo  will redo this last edit.

Each time you do one of the following actions:
● a REC ON in Live mode,
● a PLAY,
● a step copy,
● a stepmode change,
● a new track selection,
A track copy will be saved in Pyramid internal memory. By pressing  2ND  +  undo , Pyramid will revert to this copy.

Saving and loading a project

In every mode, press  2ND  +  save/load  to save, save as, load or create a new project.

An SD card must be inserted or you will be unable to enter the save/load menu.

Effect manager

Press FX to access the EFFECT MANAGER screen. Chain up to 4 real time MIDI MIDI effects per track:


There are 12 effects to choose from:
• Quantizer (with integrated humanizer)
• Arpeggiator
• Harmonizer
• Swing
• Randomization
• Delay
• Equalizer
• Scale
• Note to CC converter
• BPM
• Chance (probability)
• LFO

Effect parameters can be edited using the 5 encoders. Experiment to find your favorite settings:

 TIP You can still play or add notes in LIVE and STEP mode, mute/unmute tracks in TRACK mode, and even launch sequences in SEQ mode with the effect manager activated.

Change an effect’s position in the chain by holding  2ND  and rotating . Different arrangements may produce very different results. Experiment!

 TIP The effect manager is also a great tool if you are a keyboardist and you want to revive your old synths. Give them new features like arps and effects and they’ll sound like they never did. You can also use Pyramid to control your modular system using CV in & out to create a truly unique instrument.

The effect engine also works when the player is stopped, as Pyramid clock always runs.

Assign a control

Pyramid provides 5 clickable encoders and a touchpad. You can assign values by holding ASSIGN and turning an encoder or sliding the touchpad.

For each controller you can:
• send a CC midi message to the current track’s MIDI channel (for example pitch or a CC message)
• link to a track’s effect effect parameter (for example the quantization grid, the swing % or the arpeggiator rate of the track 02)



 TIP  Press an encoder to display its assignment and its value (for example TR02A Swing Grid = 1/16).



Once a controller has been assigned use it to make realtime changes in any mode.

Press rec in LIVE mode and record automation on a current track:
• If the encoder is assigned to a CC message, automation will be recorded to the track only if the MIDI out and the MIDI channel of the CC is the same as the current track out settings (for example MIDI A channel 04).
• If the encoder is assigned to an effect parameter, automation will be recorded to the track only if this effect is active on the current track.

Controller assignments are saved with the project and are independent of track and sequence. Selecting a new track or a new sequence will not unlink or change controller assignments.

Display features

You can access extra information in some modes by pressing DISP. For example, in STEP mode, pressing DISP will show you the piano roll editor:

The above is an example of a track programmed with notes of different lengths. You are viewing the page 1 (of 1). The current note is C4, the current velocity is 127, the current note length is 2 steps and the current note offset is 0%. If you add a step by pressing a pad you will add another note with these parameters.

Quick track settings

This is one of Pyramid’s most useful features, we strongly advise you try it!

To change the current track settings, in any mode, hold TRACK to use the shortcuts:
solo
midi channel
zoom
length

time signature


For example, when in STEP mode, hold TRACK + zoom and rotate to change the zoom resolution (from 25% to 1600%) in a flash.

Play/Pause/Stop

Press to play/pause the sequencer. flashes (depending on the BPM and the current track time signature) if the project is played, and is softly backlit if the project is paused.

Press to stop the sequencer. If you are working with multiple pages (see Step Mode section), pressing once stops the player at the current track page, while pressing twice rewinds to the beginning of the track.

Two presses on STOP will send an All Note Off MIDI message to your instruments, a third press will send an All Sound Off MIDI message to silence the synth’s note release instantly. In addition, the third STOP press also sends Program Change messages of active tracks, if set.

By default MIDI clock is sent to MIDI A out, MIDI B out and USB out. Play/stop/continue messages are disabled by default. You can activate them separately in the SETTINGS menu.

Metronome

Hold  2ND  and press LIVE to activate the metronome:

The metronome will send a specified MIDI note on the selected output channel and will follow the tempo. You can configure it in SETTINGS > MISC.

Settings menu

Press  2ND  + FX to enter General Settings.


Select a category to configure your project:
● MIDI IN (midi input configuration)
● MIDI OUT (midi outputs configuration)
● MISC (other project and core options)
● CV/PEDAL (CV/Gate inputs+outputs analog configuration, pedal control assignment)
INFO (version, memory, analog inputs & outputs, midi monitors)
SAVE (save/restore all general settings, save/restore all track settings)


Inputs/outputs

MIDI connectivity

MIDI INPUT


Connect one or more MIDI controllers (e.g. keyboard, drumpad, fader surface) to Pyramid’s MIDI in, and transmit MIDI notes and MIDI CC messages to Pyramid. In SETTINGS you can choose between OMNI-mode (control the selected track, regardless of controller output channel) and MULTI-mode (control TR01A if a controller’s channel = 01, control TR14A with a controller set to channel 14, etc.). This option allows you to record multichannel events as a MIDI looper.

Synchronize Pyramid’s clock (tempo) with an external machine and even control play, pause, and start remotely.

MIDI OUTPUTS


Pyramid provides two MIDI outputs (A and B) to control a large range of electronic instruments such as synthesizers, drum machines, and MIDI enabled effects. Because both MIDI outputs provide 16 MIDI channels Pyramid can control up to 32 instruments.

USB connectivity

USB MIDI INPUT


Connect Pyramid to your computer with a standard mini USB cable and Pyramid will receive MIDI notes, CC messages, pitch, aftertouch, transport messages and MIDI clock. USB works exactly like a MIDI DIN input.

USB MIDI OUTPUT


Pyramid can also control and sequence up to 16 virtual instruments (VST) on your computer, and sync your DAW via MIDI clock.

CV/Gate connectivity

CV/Gate INPUTS


There is one CV and one Gate input on the Pyramid. You can use them to convert CV/Gate notes to MIDI notes, then add real-time MIDI effects to your CV/Gate performance, and finally send these notes to MIDI OUT, CV/Gate OUT, or USB OUT.

To use these inputs, plug a CV pitch output from your instrument to the Pyramid’s 3.5mm CV input jack, and plug the gate output of your instrument to the 3.5mm CV Gate input jack. Your external instrument will control MIDI notes on the currently selected Pyramid track.

You can also use the CV inputs as a voltage controlled MIDI CC MESSAGES. For example, a CV voltage of +5V can be converted to a CC MESSAGE value of 127. Pyramid will then send the CC Message via MIDI OUT, or you can choose to control an internal MIDI effect (e.g. control TRACK04 arpeggiator rate with CV input #1, and control the TRACK11 quantize grid with the CV input #2).

We added these 2 CV/Gate inputs to Pyramid for those who like to experiment.

CV/Gate OUTPUTS


Pyramid has only one CV output and one Gate output because we wanted to keep the machine compact. “ENV” is another control voltage output that is very useful for sequencing filters or any voltage-controlled input on your modular or CV synth.

DIN Sync connectivity



Pyramid provides an optional DIN sync output (configurable to Sync48, Sync24, Sync12, …in menu SETTINGS) that lets you synchronise your vintage instruments with tempo clock and a run/stop message.

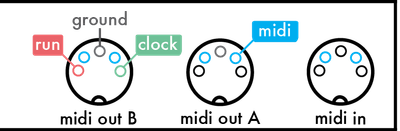

The DIN sync output is available on MIDI out B, routed as following:

In SETTINGS, you can also configure the 3.5mm CV ENV jack as a DIN Sync output to provide analog clock to your modular

Pedal foot-switch



You can plug a foot-switch type pedal and assign it to an internal control (REC, play/pause or play/stop). You can also use a double pedal (stereo jack) to control 2 actions in Pyramid.


Connectivity examples

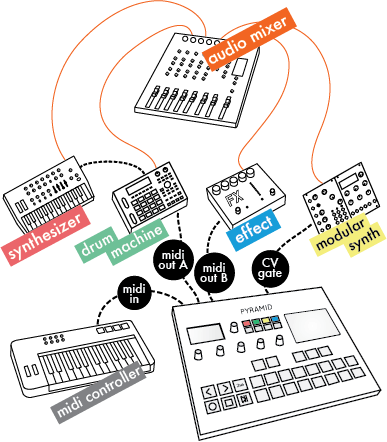

Pyramid on stage

Pyramid sequencing virtual instruments

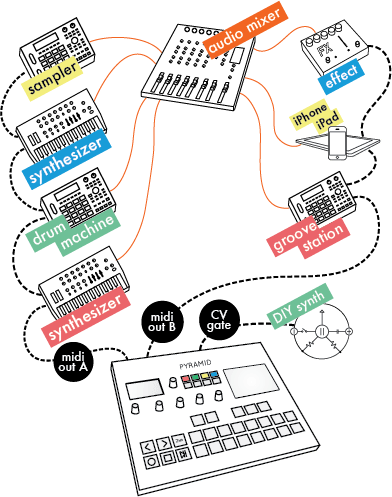

Pyramid on the studio table
