Select a kit

A kit is a group of 4 samples.

Kits are organized in 26 banks (A to Z). Each bank includes up to 100 kits:
A0 to A99
B0 to B99
...
Z0 to Z99

Rotate the encoder to display the current kit and to select a kit, and load it by pressing the encoder.

You can only scroll through created kits inside the SD card.

Fast scroll (bank select): hold  assign  and rotate the encoder.

Trig a sample

Use the gate input 1 to play SP1 (sample 1), gate input 2 to play SP2, gate input 3 to play SP3, gate input 4 to play SP4.

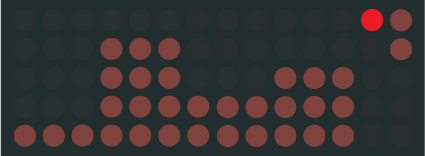

You can see the samples playing on the screen, thanks to the 4 vu-meters:

Each sample is always outputted on its dedicated audio output (1, 2, 3, 4) and unplugged audio outputs are normalled to "mix" output.

To pre-listen a sample, hold  listen  and press the mode buttons ① ② ③ or ④.

Exit

Press  listen  to quit the current mode (kit select, assign mode, settings, ...).

Assign a CV input

Each of the 4 CV inputs can be assigned to any effect/parameter of any voice:

press  assign ,
select the CV input (►1, ►2, ►3, ►4)
select the sample(s) to control (SP1, SP2, SP3, SP4, ALL SAMPLES)
select the effect/parameter to assign (pitch, bits, filter, freeze, start, length, env, run, levels)

Mute groups

Mute groups allow each sample to be muted by one or more samples, very handy to create open/close and conditional behaviors. While holding  assign , select the sample to be group-muted (by pressing ① ② ③ or ④) and then select the sample triggering the mute (up to 3 samples).

Let's take a few examples:

SP1 muted by SP2
hold  assign , press ①, ②, release  assign


SP2 muted by SP1 + SP4
hold  assign , press ②, ① , ④, release  assign

Delete SP1 mute group
hold  assign , press ①, release  assign

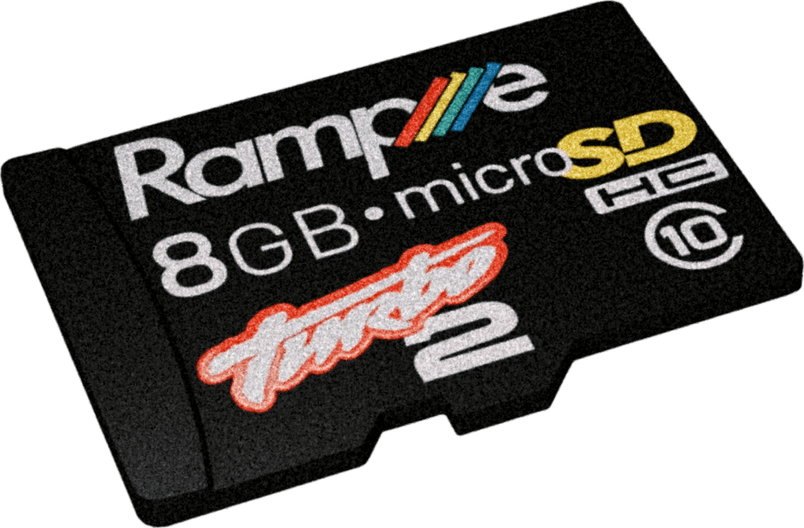

microSD

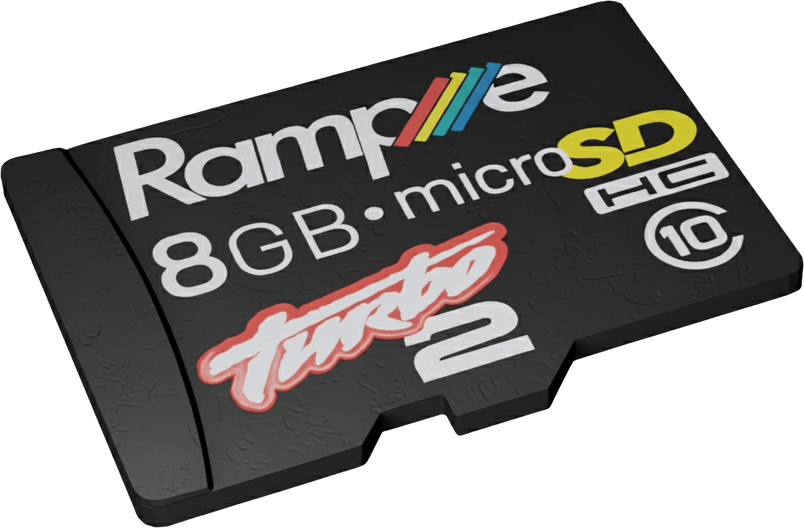

We strongly advise to use only the provided microSD card, as its fastness is fundamental for Rample optimal playback. We do not guarantee Rample stability with other cards.

Please do not eject the SD card while Rample is playing.

Audio effects & parameters workflow

Each voice has its own “rack” of effects, and all audio effects can be enabled at the same time, allowing you to manipulate your samples in real time, from a gentle lowpass to a massive destruction!

Each potentiometer controls the selected effect amount, per voice. Pot 1 will always control SP1, Pot 2 will control SP2, ...

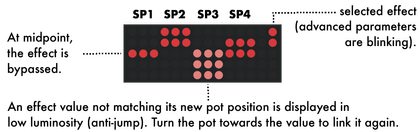

Rotate a potentiometer (or select an effect with ① ② ③ or ④) to display the '4-voice effect values' view:

Audio effects

Select an audio effect (pitch, bits, filter, freeze) with ① ② ③ or ④.

pitch — a great sounding pitch engine, based on a 6-pole interpolator. The range goes from -1octave to +1octave:

bits — two different bitcrushing algorithms, based on sample rate reduction and resolution reduction. It produces distortion and warms up the audio signal:

filter — a low resonance filter, DJ-style, cuting off the high frequencies (low pass) or the low frequencies (high pass):


freeze — when enabled (pot ≠ midpoint), Rample will sample and loop a fraction of the played waveform, creating a glitching effect:


levels (hold  assign  and press  listen ) — turn the knob to the left to decrease the voice gain, or turn to the right to drive the signal:


Pro tip: edit the 4-voice values at the same time by holding an effect button and rotating the menu encoder (e.g. hold PITCH + rotate encoder).

Advanced parameters

Double tap ① ② ③ or ④ to select start point, length, env or run mode.

start point — set the beginning of the sample playback.

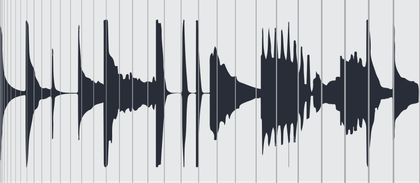

If setting SLICER = FREE, the start point goes from 0% to 100% of the sample total length. If SLICER = QUANTIZED, the sample length is divided into 16 equal parts, handy to edit the start point of your sample 'in beats'.

length — Set the duration of the sample. Depending on the setting SLICER = FREE, the duration goes from 100% to 0% of the sample total length. If SLICER = QUANTIZED, the sample length is divided into 16 equal parts, handy to edit the length of your sample 'in beats'.


env — turn the knob to the left to add sample attack,
or turn to the right to add sample decay.

run mode — 3 types of sample playback.
- one shot: a trig plays the sample entirely
- toggle loop: a trig alternatively plays/stops the sample
- gate high only: sample played only when gate is high

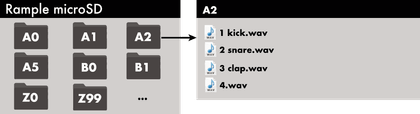

How to make your own sample kits

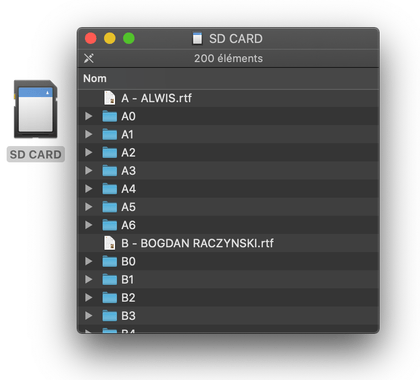

The rule is simple: 1 kit = 1 folder. Inside the Rample SD card, each kit must be in a folder named ?X where:
? is the bank letter, from A to Z (handy for organizing your samples)
X is the number of the kit, from 0 to 99

In a folder, drop your favorite samples. The first character must be the number of the voice, from 1 to 4 (voice 1 to voice 4). For clearer file names and easy sorting,you can add any text after the digit, as per the figure below :



These files must be in a standard .wav mono format, 16-bit or 8-bit, 44100 Hz. There is no size or duration limits, you can even play hours-long samples.

Multi-layers kits

It's possible to "multisample" your kits: in a folder, add up to 12 samples per voice.

These layers can be played randomly (by default), or in a controlled fashion (see layer setting).

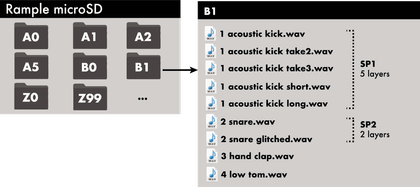

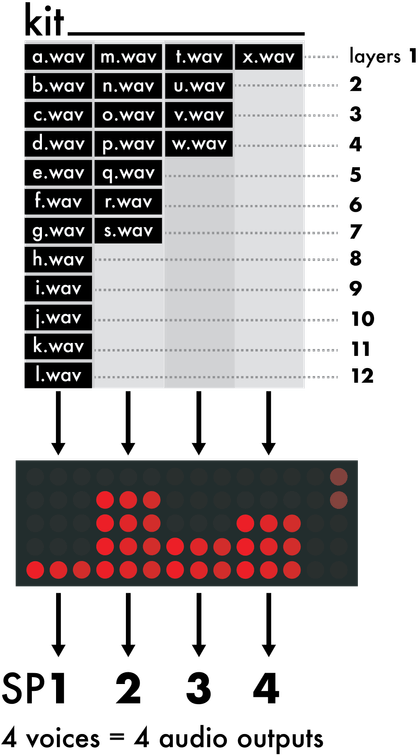

The following example shows SP1 with 5 layers, SP2 with 2 layers, SP3 and SP4 with only one layer :



Sample layer names are numerically and alphabetically sorted in Rample, handy to create a special order when controlling the layers with midi velocity or CV (first samples are triggered by lowest velocities).

Settings

To enter the setting list, simply press the menu encoder:

RESET
reset all effect parameters to default.

RANDOM
randomize effect values.

COPY
copy all parameters & assignments.

PASTE
paste the copied parameters & assignments.

STORE
save current kit parameters & assignments on the SD card.

CHANNEL
set the input midi channel of this unit.

SP1
set the midi note 0...127 to trigger the sample 1.

SP2
set the midi note 0...127 to trigger the sample 2.

SP3
set the midi note 0...127 to trigger the sample 3.

SP4
set the midi note 0...127 to trigger the sample 4.

VELOCITY
assign the midi in note velocity to LEVEL, PITCH, BIT, FILTER.

PITCHBEND
assign the midi in pitchbend to ALL LEVEL, SP1...SP4 LEVEL, ALL PITCH, SP1...SP4 PITCH, ALL BITS, SP1...SP4 BITS, ALL FILTER, SP1...SP4 FILTER, ALL FREEZE, SP1...SP4 FREEZE.

PROG CHANGE
enable midi in PC to change the kit number.

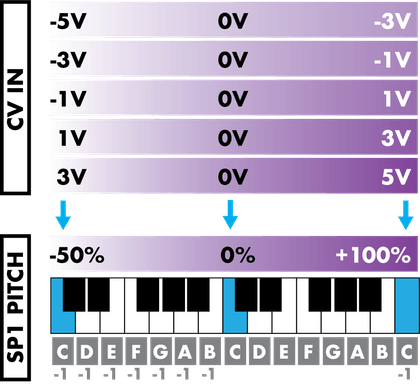

CV IN
input voltage = 0►5V or -5V►5V.

PITCH
enable/disable pitch chromatic quantizing.

SLICING
enable/disable START POINT and LENGTH quantizing.

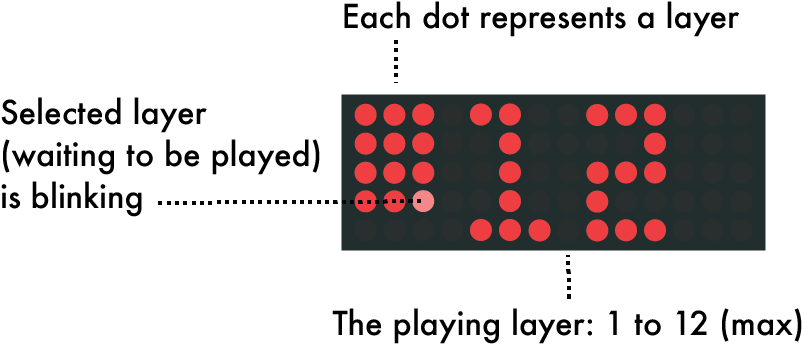

LAYERS
set the multi-layers behaviour: RANDOM, CYCLIC, controlled by VELOCITY MIDI IN or CV IN.

SAVE SETTINGS
save current settings on the SD card.

VERSION
display the running OS version and the % of CPU used.

Midi implementation chart

Midi messages are ignored when not matching the setting’s midi channel.
