The Ultimate Output Expander For Core and Hermod+

Introducing xp32, the perfect expander for unlocking 32 assignable CV or Gate outputs. Pair it with your Hermod+ sequencer, or with Core, to amplify the creative power of your modular system.

The xp32 opens a new world of possibilities for both live performances and studio setups, giving you the flexibility to realize your most complex musical ideas.

490€ — in stock

See on

Seamless Integration.

Connect the included ribbon cable to the back of your Hermod+ or Core. xp32 is automatically recognized, and your 32 additional outputs are instantly ready to use.

Hermod+'s 8 CV/Gate tracks remain untouched. Instead, the xp32's 8 tracks are internally mapped to Hermod+'s MIDI tracks, offering maximum expandability without altering your existing workflow.

Unmatched Precision & Flexibility.

Each of the 32 output jacks is powered by a dedicated 16-bit industrial-grade DAC, ensuring the best accuracy for all your control voltage signals, from pitch to fine modulations.

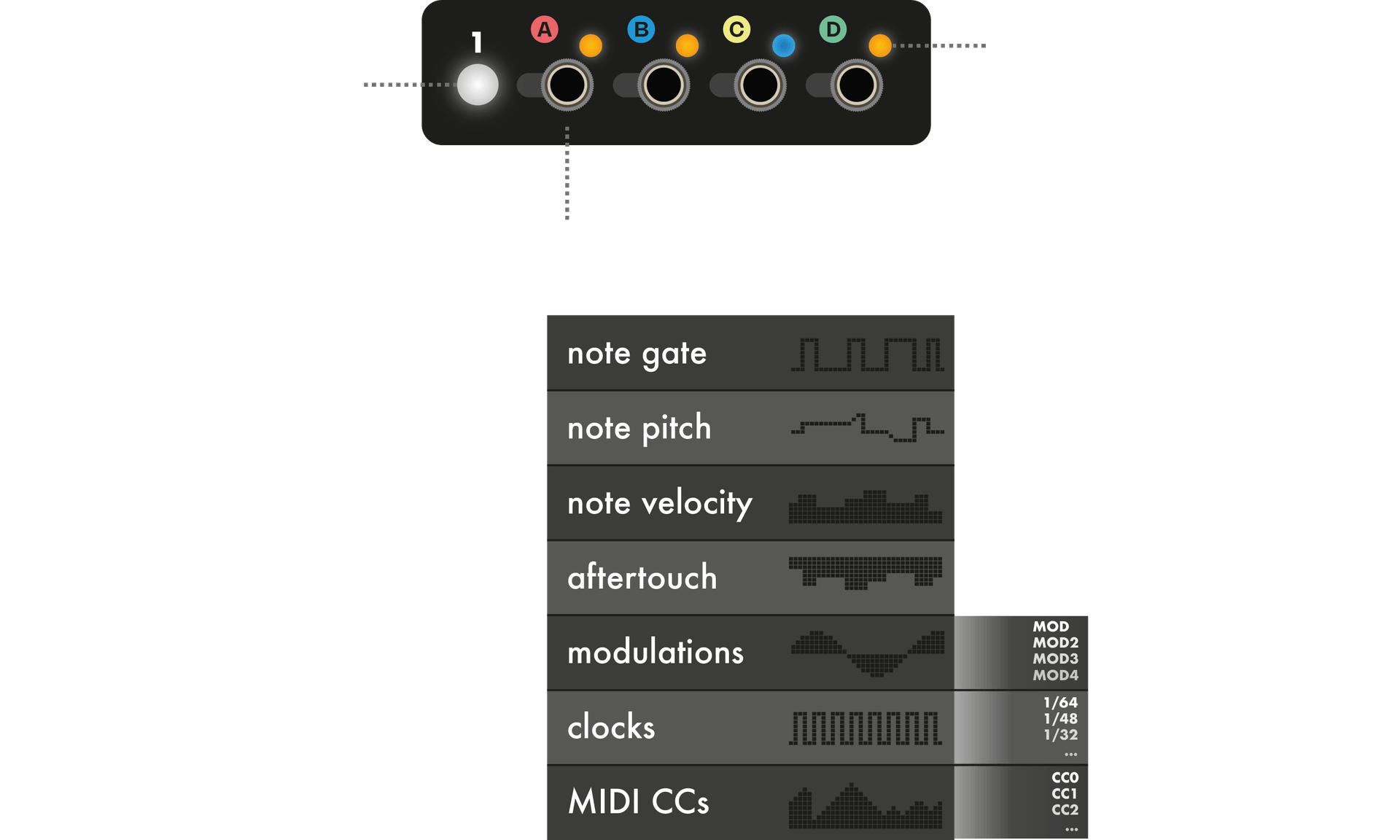

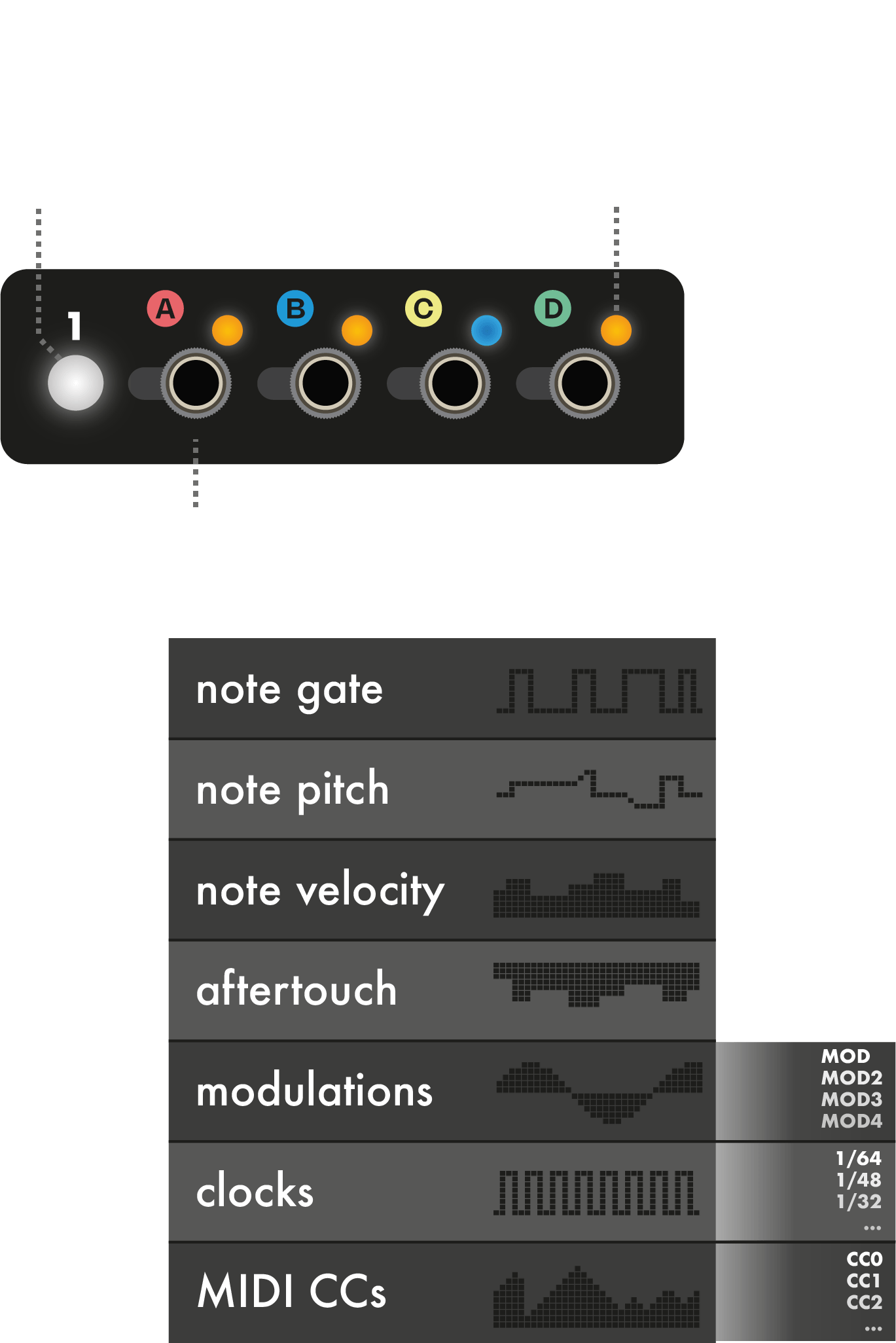

Configure each output as a Gate (for notes, triggers, clocks...) or as a CV (for pitch, velocity, aftertouch, modulation...).

The xp32's wide voltage range (–10V to +10V) ensures compatibility with a variety of modules, giving you the freedom to design a layout that best suits your modular rig.

High-precision.
Low noise.

At the heart of the xp32 are highly-precise digital-to-analog conversion circuits, developed with meticulous attention to detail. We've incorporated high-end components to guarantee reliable, low-noise, high-performance outputs that you can depend on for both small and large modular systems.

The 32 signal LEDs are driven by a fully analog current-control circuit, guaranteeing zero digital noise.

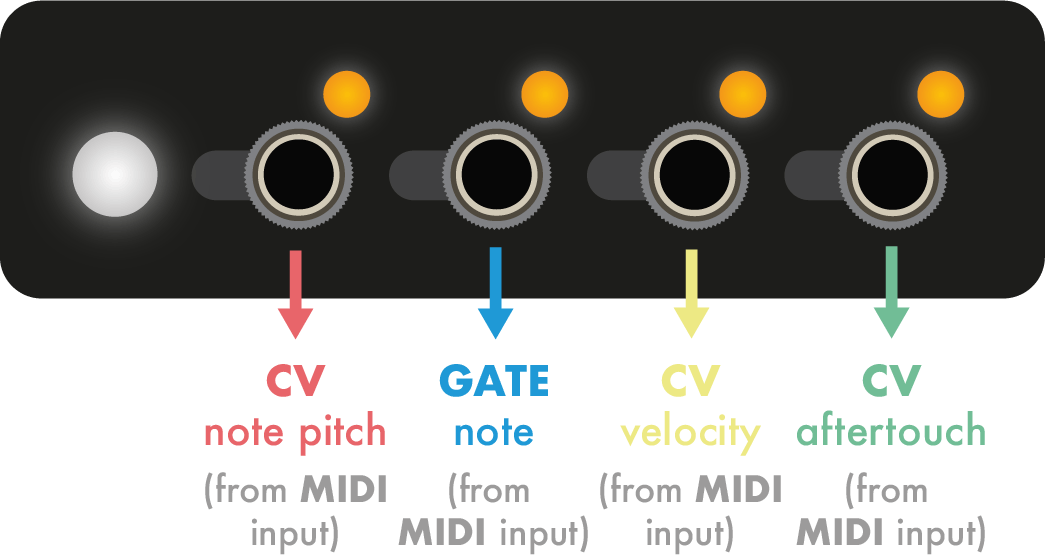

Voice configuration examples

Default config
