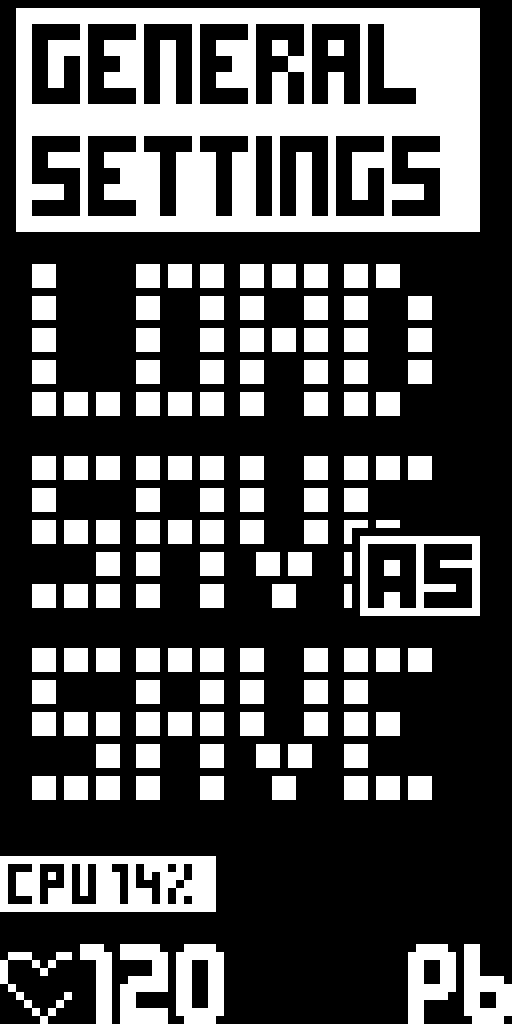

• Hold the  input  button to open the Preset menu.
• Rotate  encoder  to select, then Press it to edit and confirm.



GENERAL SETTINGS
Access device-wide configuration options like clock source, screensaver or MIDI output routing.

LOAD
Load a stored preset with a live preview before applying it.

SAVE
Save changes by overwriting the current preset number.

SAVE AS
Save the current configuration to a different preset number.

Each preset contains :

• Per–track input routing
• Per–track output Engines and associated parameters
• Output mapping list for both xp32 slots
• Custom scale
• BPM and swing settings

 Note  In a dual–xp32 setup, each preset stores the configuration of both xp32 units.

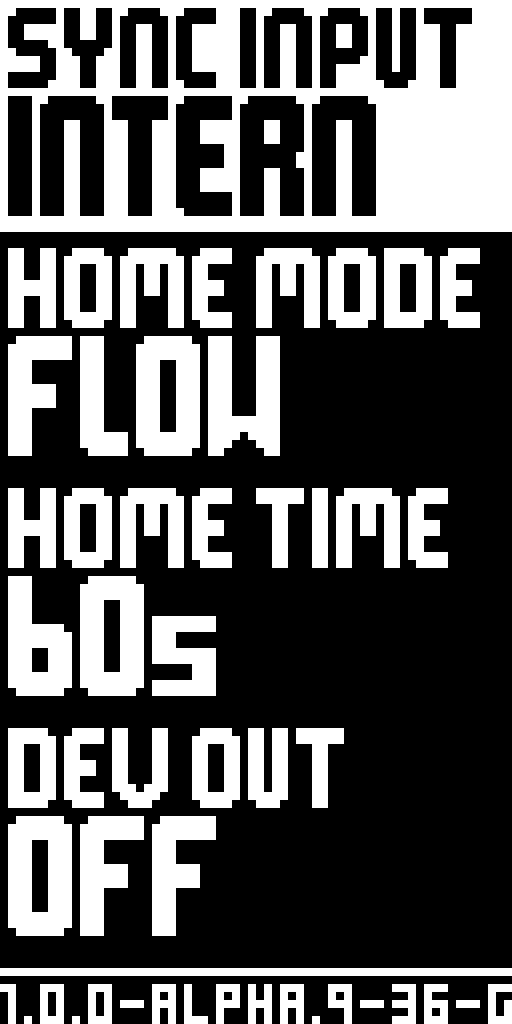

• Select GENERAL SETTINGS from the Preset menu to access the device–wide settings.
• Rotate  encoder  to select, then Press it to edit and confirm.

These settings are global, meaning they are not stored with presets. They are only saved when you Select SAVE at the bottom of the list.

 CLOCK   INTERNAL   TRS   DEVICE   HOST
When set to  INTERNAL , Core runs from its own clock, and the BPM can be adjusted in the  tempo  page. Otherwise, Core follows the 24 PPQN MIDI clock and transport messages received on the selected input port.

 HOME
Determines the style of the screensaver that appears after a period of inactivity.
 OFF  The screensaver never activates.
 BLACK  The screen goes fully dark for maximum power saving and burn–in protection.
 PRESET  Displays a detailed overview of the active preset's inputs/output routing.
 FLOW  Displays an animated routing diagram with live output voltage levels (default). This visualisation is reachable at any time by pressing both  outputs  +  params .

 Note  Press any button or Rotate  encoder  to wake Core up.

 INACTIVITY   OFF   10s   20s   ...   600s
Sets the idle time before the screensaver appears.

 TRS OUT
Sets the behavior of the MIDI OUT port.
 OFF  The port output is disabled.
 SYNC  The port sends clock and transport.
 TRS IN   DEVICE IN   HOST IN  The port is forwarding the events (MIDI Thru) coming from the selected input.

 DEV OUT
Sets the behavior of the USB DEVICE output.
 OFF  The port output is disabled.
 SYNC  The port sends clock and transport.
 TRS IN   HOST IN  The port is forwarding the events (MIDI Thru) coming from the selected input.

 HOST OUT
Sets the behavior of the USB HOST output.
 OFF  The port output is disabled.
 SYNC  The port sends clock and transport.
 TRS IN   DEVICE IN  The port is forwarding the events (MIDI Thru) coming from the selected input.

 PC INPUT   OFF   TRS 01–16   DEVICE 01–16   HOST 01–16
Defines the input port and channel used to receive preset recalls via MIDI Program Change messages.
PC1–PC8 recall presets 1–8 respectively.

 ENC PRESS   ENGINES   PARAMS
Sets the encoder's primary action in Outputs mode. Engines: press the encoder to select an Engine; hold it to edit the Engine Parameters. Params: press the encoder to edit the Engine Parameters; hold it to select an Engine.

 SAVE
Stores all general settings to internal memory. General settings are not saved automatically and must be stored using this item to persist across reboots.

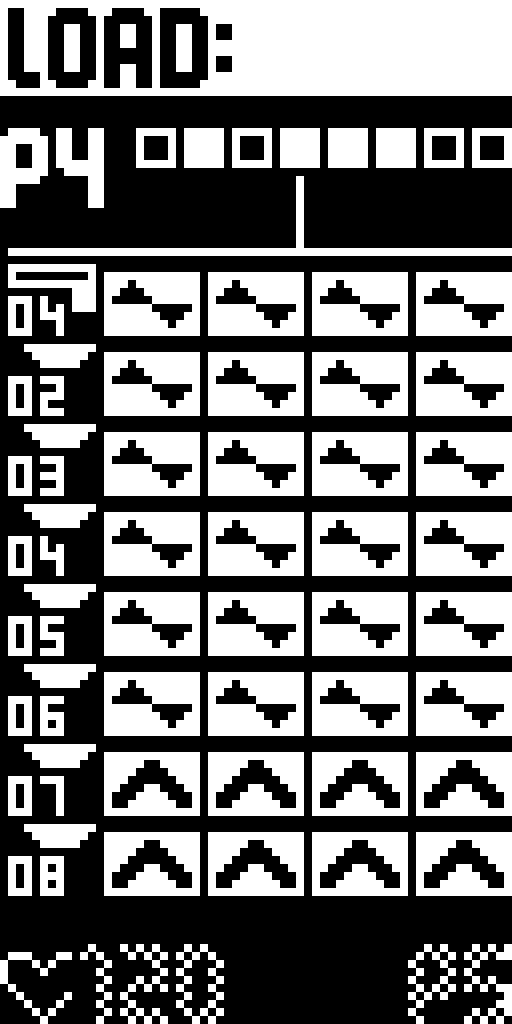

• Select LOAD from the Preset menu, then Rotate  encoder  to browse the preset numbers.
• Press  encoder  to load the selected Preset.

Core displays a live preview of the selected preset as a routing grid, allowing the configuration to be auditioned before it is loaded.

The preview shows the state of all eight outputs on the xp32 containing the currently selected track. Select the other xp32 slot to view its outputs.

 Note  In a dual–xp32 setup, the configurations of SLOT A and SLOT B are saved and loaded together. Presets are always loaded into both xp32 units, regardless of which track is currently selected.

Two save options are available from the Preset menu.

SAVE
Overwrites the active preset with the current configuration.

SAVE AS
Saves the current configuration to a different preset slot.

• Rotate  encoder  to select the destination preset, then Press to save.

Both options require confirmation: YES saves the preset, while NO cancels the operation.

 Note  Saving always stores the configurations of both xp32 slots in the selected preset, keeping SLOT A and SLOT B synchronized within the same preset.
